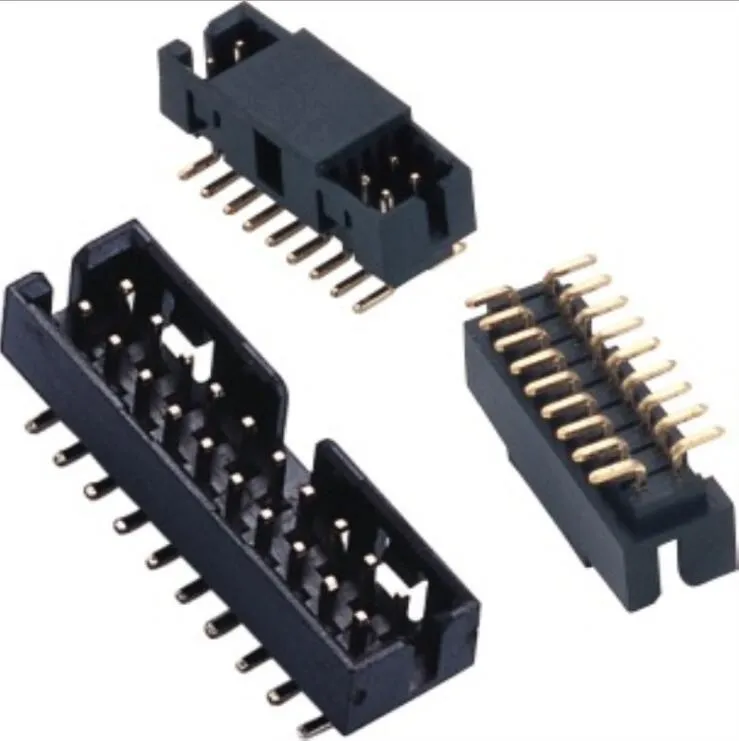

2.0mm Pitch Shortened SMT Vertical H=6.35 Gold

2.0mm Pitch Shortened SMT Vertical H=6.35 Gold

2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header MAIN FEATURES TECHNICAL DATA ITEMS MOQ;100PC
SHARE
Send inquiry

Description

Basic Info.
Model NO. HS140
Transport Package Bag+Carton
Specification 2.0mm pitch
Trademark none
Origin China
Production Capacity 100000000PCS/Year
Product Description
2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header
MAIN FEATURES

Pitch2.00mm
ColorBlack
Poles2x1p-2x40p
Connection directionStraight


TECHNICAL DATA
Standard DataRated current:1.5A AC(rms)/DC
Rated voltage:100V AC(rms)/DC
Material
Insulation MaterialHigh Temperature Plastic ,UL94V-0
Material of current carrierBrass,Tin plated or Gold plated
Electronical Performation
Contact Resistance20mΩ max
Insulation Resistance1000MΩ at DC500V min
Withstand voltage500V for 1min
Ambient Conditions
Operation temperature-40ºC to +105ºC
Storage temperature-40ºC to +70ºC
Shelf life1 year
Soldering capability
Manual30W iron,320±5ºC,3S max
Wave soldering250±10ºC,5S max
Environmental Compliance
RoHS2.0,REACH

ITEMS
MOQ;100PCSlead time:about 5-10 daysexport port:ningbo or shanghai portshippment terms:by sea or by air or by expresssamples is free,freight collect.best price with high quality

ENVIRONMENT
We hereby confirm that all the raw materials in our product including components, parts, materials and finished products are fully conform to:

1. The EU's RoHS 2.0(Directive 2011/65/EU & EU 2015/863 )2. SVHC(Substance of Very High Concern) of EU directive of the Regulation(EC) No.1907/2006(REACH).
DRAWING

2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header


PRODUCT PICTURES

2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header


2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header


2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header


2.0mm Pitch Shortened SMT Vertical H=6.35 Gold-Plated Pin Header Box Header


MAIN CUSTOMER

FACTORY VIEW

SHIPPING & PAYMENT--------------------------------------------------------------------
1. FedEx/DHL/TNT/UPS/EMS/SF for samples, Door-to- Door.2. By Air or by Sea for Mass production.Customers specifying freight forwarders or negotiable shipping methods. 3.Delivery Time: 3-7 days for samples; 10-30 days for Mass production.
4.Payment Detail: L/C, T/T, Western union, Paypal, or other methods.
